Default RNS-E Retrofit into a D2....

A popular topic this one, so thought I'd cover it off thoroughly...

The 'plan' at the moment is to install the RNS-E, Bluetooth handsfree and reversing camera. I might as well do this right now whilst my carpets and interior is out for the individual rear seat install.

For those not in the know, the RNS-E has a million advantages over the RNS-D Navi plus that comes with D2 normally, here are a few:

Faster, way faster
Larger, wide, screen
Flip down screen reveals 2 SD card slots
Plays MP3 directly from said slots
Support for an excellent bluetooth handfree system
Europe wide mapping as standard
Did I mention it was faster?
TMC built in, no external box, and it works 100%
Supports the exsting CD changer in the boot
Supports reversing camera
Supports playback of CD's through front slot

It does has 2 significant issues though:

1) The D2 console is a different shape to the A3/A4/A6/TT and thus as the RNS-E was never meant to go in to the D2, it doesnt actually fit. The good news is though that the A4 / A6 are a close fit, and with some brave cutting down to size, it should go in snug.

2) You lose the DIS turn by turn directions, and anything else graphical that it would put up in the large section of the screen. You do however get radio / track names etc. I hate this, but I'm willing to sacrifice it for the other benefits.

Today marks the start of the project as some toys, sorry, components have arrived in the post:

First up, from Kufantec.de:

Their order codes: 33406 and 34403, a pair of coax adapters.

The single connection terminating in a blue end is for converting a pre-existing RNS-D type Satnav aerial cable into an RNS-E one. You wouldnt need this unless you already have an RNS-D...

The other cable is for converting the radio aerial from the two connections on the back of the RNS-D into the smaller twin package that plugs into the RNS-E.




Next, also from kufantec.de - Their item bumber 33405 a harness for converting the RNS-D wiring connections into the RNS-E Quadlock.

It makes a really easy job of it. The two stray cables are for the canbus connections which are the other side of the TMC module and must be soldered in manually, there is no getting around this if you want the radio station / track names in the DIS.






Also from Kufantec, but could be bought anywhere - Some fabric tape. Can make even the messiest of cable wiring jobs look factory standard - I have loads of it as I'll need to do all the wiring for the rear seats too..

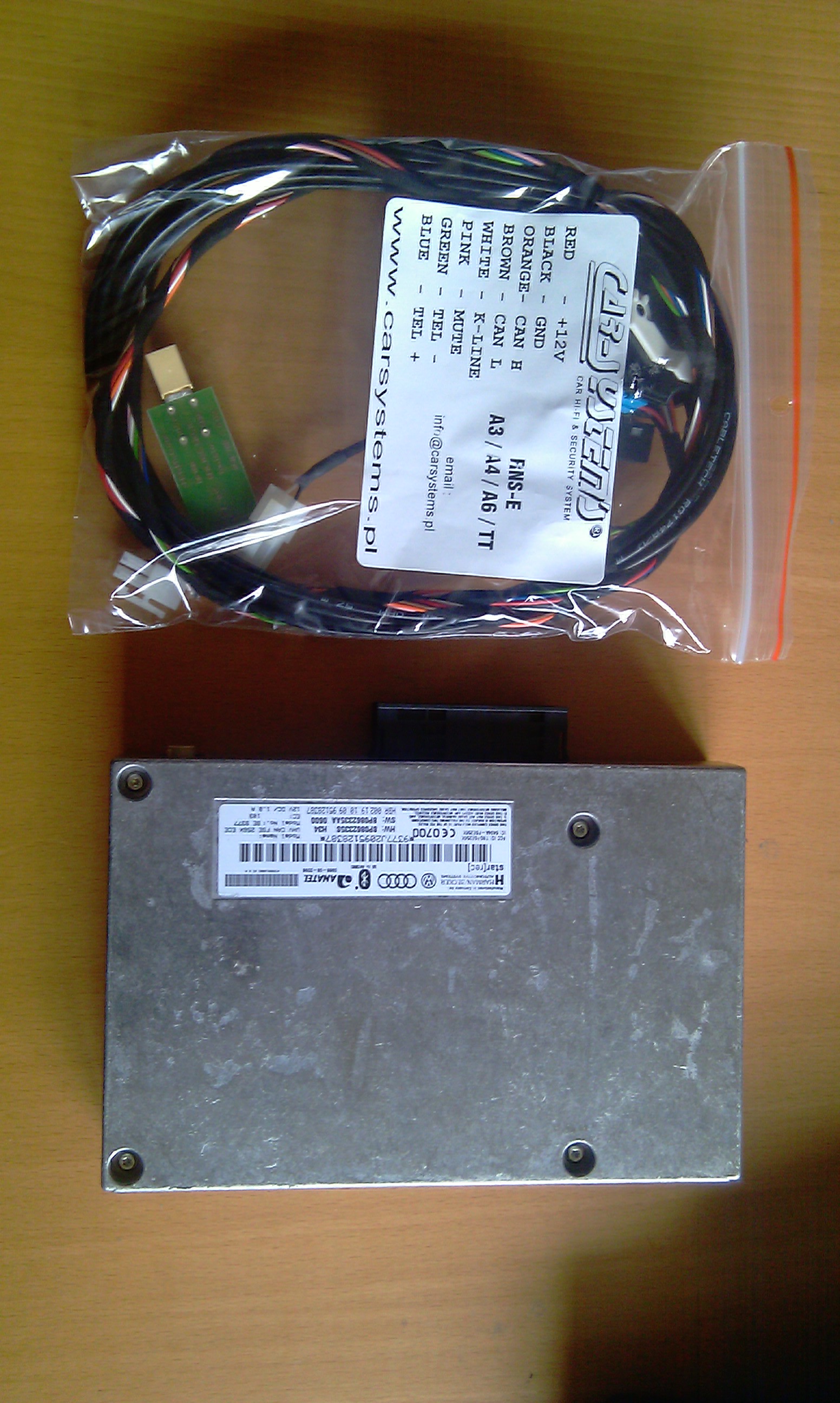

And finally, the bluetooth handsfree module. I dont pretend to be an expert on these. I think some of the better ones can do rsap as well, but that doesnt interest me, so here we have a 'brand new' unit from www.carsystems.pl complete with wiring loom and bluetooth aerial... Look on ebay, there are loads to choose from:



So, I'm just waiting for the RNS-E now... I've got for the A6 version, which is slightly more expensive due to the rarity than the A4 one, but should give an overall better fit. The A4 version is quite high, but about 1mm too narrow at either side. When fitted the gap is inpercetible really, but it would annoy me because I'd know it was there.

I've also ordered a rear view camera off Ebay (12) and I'm just deliberating whether to fit a pukka Audi TV tuner or not....

I'll update when some more toys, sorry, components arrive
Attached Thumbnails
Click image for larger version

Name:	RNS-E 002.jpg
Views:	6010
Size:	438.5 KB
ID:	747   Click image for larger version

Name:	RNS-E 003.jpg
Views:	4934
Size:	609.7 KB
ID:	748   Click image for larger version

Name:	RNS-E 004.jpg
Views:	4800
Size:	759.5 KB
ID:	749   Click image for larger version

Name:	RNS-E 005.jpg
Views:	5569
Size:	711.4 KB
ID:	750
__________________
For parts enquiries and Forum User Administration please contact customer services directly, not me - enquiry@a8parts.co.uk, www.a8parts.co.uk, or call 01642 783537

The Daily - Audi A7 Sline TFSi. Silver. Adaptive Cruise Control, Sunroof, Power close doors, Twin UV and heat reflective glass with privacy, Park assist, Quad Zone, Rear blind, 4 x heated seats, Heated steering wheel, Infrared Nightvision, Bang and Olufsen, Heads up display, Extended Leather, Navigation Plus, Mobile Telephone high, Electric steering column, Advanced key, All LED lights inc High beam assist, Parking system advanced with corner view.....

Her Mini - Audi A2 1.4 Tdi SE. Black. Climate Control, Cruise

The Missus - 2007 Audi Q7 4.2 TDi Sline. Dynamic xenons, Heated seats, Auto boot, Sat nav, Bose, Side Assist, Bluetooth, MMI high, Voice control, Ami, Towbar, Privacy glass, Panoramic sunroof, Advanced key, 3 x Auto Dim Mirrors, Folding mirrors, Full leather

The Past- 2001 D2 4.2 QS Silver, 1997 D2 S8 Silver, 1999 D2 4.2 Silver, 2002 D2 S8 Dolphin Grey, 2003 C5 RS6 Blue, 1998 D2 S8 Black, 2000 D2 4.2 QS/S8 Ming Blue, 2003 D3 4.2 Ming Blue, 2005 B7 S4 Blue, 2006 D3 3.0 Tdi Black, 1999 D2 4.2 Silver, 2003 D3 4.2 LPG Crystal Blue, 2000 D2 S8 Silver, 2007 3.0 Tdi Q7 Black, 2009 B8 S4 Black, 1998 D2 S8 Agate Grey, 2006 D3 4.2 Tdi Blue, 2006 D3 S8, 2007 Q7 3.0 Tdi, 2006 C6 S6
Reply With Quote
  #2
Old 19th February 2010, 02:21 PM
Singh's Avatar
Singh Singh is offline
Senior Member

Join Date: Jan 2009
Location: Royal Leamington Spa
Posts: 3,853
Default

Ian, thanks in advance for doing the RNS E write up. I was going to pay to have mine done so this should save me some money.

I currently have my I Phone connected up to the RNS D through the TV tuner in the back using AV cables. How would I connect it up to the RNS E? Also where are you hooking the rearview cam into? As I understand the old TV tuner is no good with an RNS E? Thanks
__________________
2009 Audi RS 6 Saloon V10 - 420mm Ceramics, Keyless, Soft Close, Adaptive Cruise, Glass Sunroof, Blinds, Twin Pane & UV, Freeview & DAB, High Beam Assist, MTM bits, Audi Exclusive Bits, MRC, Milltek, GYEF1 ASY2's, Bluetooth streaming music to AMI mod - 753 PS/1021 NM
2014 Audi A5 S Line Coupe 2.0 TDI - Nav, Leather etc... Company Car
1995 Audi A8 4.2 V8 quattro Sport - Bose, Solar, Blinds
Reply With Quote
  #3
Old 19th February 2010, 06:12 PM
Mkoneman's Avatar
Mkoneman Mkoneman is offline
Senior Member

Join Date: Jan 2009
Posts: 422
Default

i couldn't live with the gaps or if the colour of the illumination was slightly different

good write up tho

any chance of some bigger pics
__________________


www.facebook.com/obdworks
full genuine ross-tech vcds
full genuine vag- tacho
full genuine mpps flash mapping
Reply With Quote
  #4
Old 19th February 2010, 08:15 PM
CliveH's Avatar
CliveH CliveH is offline
Senior Member

Join Date: Jun 2009
Location: Yorkshire
Posts: 707
Default

Quote:
Originally Posted by Singh View Post
I currently have my I Phone connected up to the RNS D through the TV tuner in the back using AV cables. How would I connect it up to the RNS E?
You'll need the Kufatec IMA iPod interface for that Amar
http://www.kufatec.de/shop/product_i...9bcece866d8fe4
__________________
Present: S4 B8 avant, fully loaded, MRC Stage2, Milltek non-res, KW springs
Past: S8 D2 FL, S2 ABY coupe, RS6 C5 saloon, RS4 B7 saloon, S4 B5 saloon, S4 B6 avant, all gone but not forgotten
Reply With Quote
  #5
Old 19th February 2010, 08:45 PM
Singh's Avatar
Singh Singh is offline
Senior Member

Join Date: Jan 2009
Location: Royal Leamington Spa
Posts: 3,853
Default

Thanks for that Clive, wow and it integrates through the headunit as well. Very impressive.
__________________
2009 Audi RS 6 Saloon V10 - 420mm Ceramics, Keyless, Soft Close, Adaptive Cruise, Glass Sunroof, Blinds, Twin Pane & UV, Freeview & DAB, High Beam Assist, MTM bits, Audi Exclusive Bits, MRC, Milltek, GYEF1 ASY2's, Bluetooth streaming music to AMI mod - 753 PS/1021 NM
2014 Audi A5 S Line Coupe 2.0 TDI - Nav, Leather etc... Company Car
1995 Audi A8 4.2 V8 quattro Sport - Bose, Solar, Blinds
Reply With Quote
  #6
Old 19th February 2010, 09:00 PM
CliveH's Avatar
CliveH CliveH is offline
Senior Member

Join Date: Jun 2009
Location: Yorkshire
Posts: 707
Default

Yep, full control of the iPod from the head unit
__________________
Present: S4 B8 avant, fully loaded, MRC Stage2, Milltek non-res, KW springs
Past: S8 D2 FL, S2 ABY coupe, RS6 C5 saloon, RS4 B7 saloon, S4 B5 saloon, S4 B6 avant, all gone but not forgotten
Reply With Quote
  #7
Old 19th February 2010, 09:05 PM
IT's Avatar
IT IT is offline
Administrator

Join Date: Jan 2009
Location: Harrogate, North Yorkshire
Posts: 3,731
Default

Quote:
Originally Posted by Mkoneman View Post
any chance of some bigger pics
haha, yes, I got that a little wrong..... the joys of running a 2560 x 1900 desktop, you tend to overlook the 'normal' size screens out there... !!!

I'll shrink them back down again when I get a mo...
__________________
For parts enquiries and Forum User Administration please contact customer services directly, not me - enquiry@a8parts.co.uk, www.a8parts.co.uk, or call 01642 783537

The Daily - Audi A7 Sline TFSi. Silver. Adaptive Cruise Control, Sunroof, Power close doors, Twin UV and heat reflective glass with privacy, Park assist, Quad Zone, Rear blind, 4 x heated seats, Heated steering wheel, Infrared Nightvision, Bang and Olufsen, Heads up display, Extended Leather, Navigation Plus, Mobile Telephone high, Electric steering column, Advanced key, All LED lights inc High beam assist, Parking system advanced with corner view.....

Her Mini - Audi A2 1.4 Tdi SE. Black. Climate Control, Cruise

The Missus - 2007 Audi Q7 4.2 TDi Sline. Dynamic xenons, Heated seats, Auto boot, Sat nav, Bose, Side Assist, Bluetooth, MMI high, Voice control, Ami, Towbar, Privacy glass, Panoramic sunroof, Advanced key, 3 x Auto Dim Mirrors, Folding mirrors, Full leather

The Past- 2001 D2 4.2 QS Silver, 1997 D2 S8 Silver, 1999 D2 4.2 Silver, 2002 D2 S8 Dolphin Grey, 2003 C5 RS6 Blue, 1998 D2 S8 Black, 2000 D2 4.2 QS/S8 Ming Blue, 2003 D3 4.2 Ming Blue, 2005 B7 S4 Blue, 2006 D3 3.0 Tdi Black, 1999 D2 4.2 Silver, 2003 D3 4.2 LPG Crystal Blue, 2000 D2 S8 Silver, 2007 3.0 Tdi Q7 Black, 2009 B8 S4 Black, 1998 D2 S8 Agate Grey, 2006 D3 4.2 Tdi Blue, 2006 D3 S8, 2007 Q7 3.0 Tdi, 2006 C6 S6
Reply With Quote
  #8
Old 23rd February 2010, 08:46 PM
IT's Avatar
IT IT is offline
Administrator

Join Date: Jan 2009
Location: Harrogate, North Yorkshire
Posts: 3,731
Default The RNS-E is here....

... all the way from Lithuania, very well packaged and looks mint (just like the last one I ordered from there... )

The RNS-E, just powered on with the startup screen....

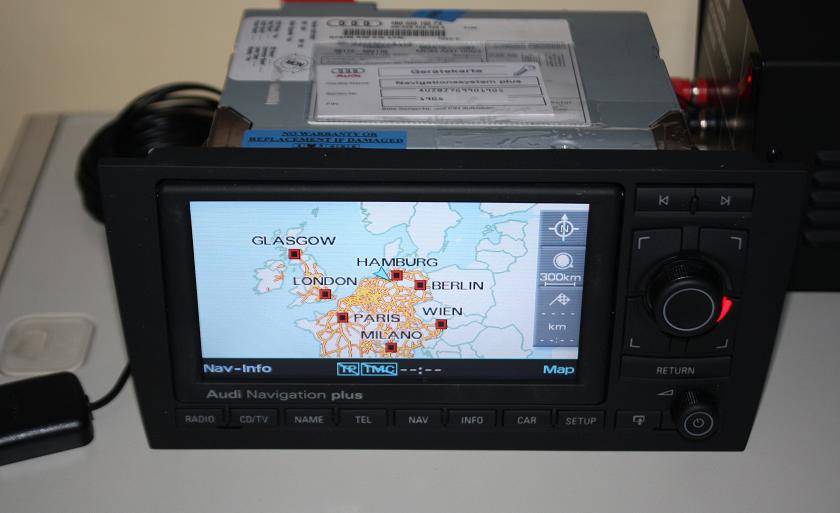

Here is the navigation map view, still showing somewhere in Germany where it last had a GPS fix. I've not had chance to get a fix here in the UK yet...





Here is the map view showing the European wide detailed coverage - One of the major improvements of the RNS-E over the RNS-D as it has a DVD rom, not CD...

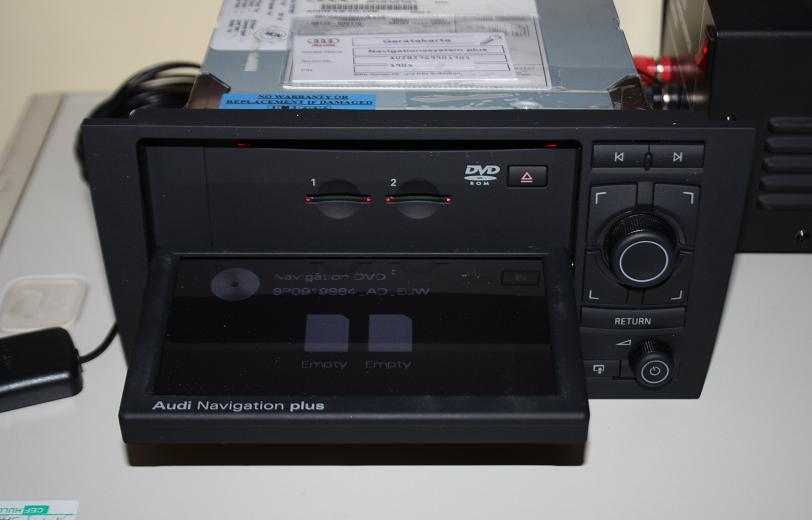

And it wouldnt be complete without a quick shot of the SD card readers that are hidden behind the drop down screen.... 2 of them, but only good for SD, not HC-SD, shame... but way better MP3 support than the RNS-D

Attached Thumbnails
Click image for larger version

Name:	Picture 423.jpg
Views:	4831
Size:	47.6 KB
ID:	769   Click image for larger version

Name:	Picture 424.jpg
Views:	4982
Size:	56.4 KB
ID:	770   Click image for larger version

Name:	Picture 425.jpg
Views:	4747
Size:	59.7 KB
ID:	771   Click image for larger version

Name:	Picture 428.jpg
Views:	4644
Size:	50.0 KB
ID:	772
__________________
For parts enquiries and Forum User Administration please contact customer services directly, not me - enquiry@a8parts.co.uk, www.a8parts.co.uk, or call 01642 783537

The Daily - Audi A7 Sline TFSi. Silver. Adaptive Cruise Control, Sunroof, Power close doors, Twin UV and heat reflective glass with privacy, Park assist, Quad Zone, Rear blind, 4 x heated seats, Heated steering wheel, Infrared Nightvision, Bang and Olufsen, Heads up display, Extended Leather, Navigation Plus, Mobile Telephone high, Electric steering column, Advanced key, All LED lights inc High beam assist, Parking system advanced with corner view.....

Her Mini - Audi A2 1.4 Tdi SE. Black. Climate Control, Cruise

The Missus - 2007 Audi Q7 4.2 TDi Sline. Dynamic xenons, Heated seats, Auto boot, Sat nav, Bose, Side Assist, Bluetooth, MMI high, Voice control, Ami, Towbar, Privacy glass, Panoramic sunroof, Advanced key, 3 x Auto Dim Mirrors, Folding mirrors, Full leather

The Past- 2001 D2 4.2 QS Silver, 1997 D2 S8 Silver, 1999 D2 4.2 Silver, 2002 D2 S8 Dolphin Grey, 2003 C5 RS6 Blue, 1998 D2 S8 Black, 2000 D2 4.2 QS/S8 Ming Blue, 2003 D3 4.2 Ming Blue, 2005 B7 S4 Blue, 2006 D3 3.0 Tdi Black, 1999 D2 4.2 Silver, 2003 D3 4.2 LPG Crystal Blue, 2000 D2 S8 Silver, 2007 3.0 Tdi Q7 Black, 2009 B8 S4 Black, 1998 D2 S8 Agate Grey, 2006 D3 4.2 Tdi Blue, 2006 D3 S8, 2007 Q7 3.0 Tdi, 2006 C6 S6
Reply With Quote
  #9
Old 27th February 2010, 01:51 AM
Singh's Avatar
Singh Singh is offline
Senior Member

Join Date: Jan 2009
Location: Royal Leamington Spa
Posts: 3,853
Default

Ian, I have a few questions before I order my RNS E.

1)Will any RNS E work? I read somewhere the D2 needs gala enabled for the A8/S8 speed signal and this is the part number I am looking for: 4B0 035 192 P
Is this correct as this unit is more pricey than the others.
2)Does the blue tooth car kit come with the microphone?


Sorry for all the questions. I'm just trying to work it all out.
__________________
2009 Audi RS 6 Saloon V10 - 420mm Ceramics, Keyless, Soft Close, Adaptive Cruise, Glass Sunroof, Blinds, Twin Pane & UV, Freeview & DAB, High Beam Assist, MTM bits, Audi Exclusive Bits, MRC, Milltek, GYEF1 ASY2's, Bluetooth streaming music to AMI mod - 753 PS/1021 NM
2014 Audi A5 S Line Coupe 2.0 TDI - Nav, Leather etc... Company Car
1995 Audi A8 4.2 V8 quattro Sport - Bose, Solar, Blinds

Last edited by Singh; 27th February 2010 at 12:42 PM. Reason: Answered one of my own questions
Reply With Quote
  #10
Old 28th February 2010, 08:06 PM
IT's Avatar
IT IT is offline
Administrator

Join Date: Jan 2009
Location: Harrogate, North Yorkshire
Posts: 3,731
Default

Quote:
Originally Posted by Singh View Post
Ian, I have a few questions before I order my RNS E.

1)Will any RNS E work? I read somewhere the D2 needs gala enabled for the A8/S8 speed signal and this is the part number I am looking for: 4B0 035 192 P
Is this correct as this unit is more pricey than the others.
2)Does the blue tooth car kit come with the microphone?


Sorry for all the questions. I'm just trying to work it all out.
1) - I think so. gninnam is running an A4 unit in a FL D2 that I suppled a while back without issues as far as I'm aware. There is an uplift in cost for the A6 ones, I'm just hoping it fits better without as much hacking of the faceplate that the A4 needs... You already have a gala signal to your RNS-D, so no worries there..... I'll post more as I find things out

2) this kit did yes
__________________
For parts enquiries and Forum User Administration please contact customer services directly, not me - enquiry@a8parts.co.uk, www.a8parts.co.uk, or call 01642 783537

The Daily - Audi A7 Sline TFSi. Silver. Adaptive Cruise Control, Sunroof, Power close doors, Twin UV and heat reflective glass with privacy, Park assist, Quad Zone, Rear blind, 4 x heated seats, Heated steering wheel, Infrared Nightvision, Bang and Olufsen, Heads up display, Extended Leather, Navigation Plus, Mobile Telephone high, Electric steering column, Advanced key, All LED lights inc High beam assist, Parking system advanced with corner view.....

Her Mini - Audi A2 1.4 Tdi SE. Black. Climate Control, Cruise

The Missus - 2007 Audi Q7 4.2 TDi Sline. Dynamic xenons, Heated seats, Auto boot, Sat nav, Bose, Side Assist, Bluetooth, MMI high, Voice control, Ami, Towbar, Privacy glass, Panoramic sunroof, Advanced key, 3 x Auto Dim Mirrors, Folding mirrors, Full leather

The Past- 2001 D2 4.2 QS Silver, 1997 D2 S8 Silver, 1999 D2 4.2 Silver, 2002 D2 S8 Dolphin Grey, 2003 C5 RS6 Blue, 1998 D2 S8 Black, 2000 D2 4.2 QS/S8 Ming Blue, 2003 D3 4.2 Ming Blue, 2005 B7 S4 Blue, 2006 D3 3.0 Tdi Black, 1999 D2 4.2 Silver, 2003 D3 4.2 LPG Crystal Blue, 2000 D2 S8 Silver, 2007 3.0 Tdi Q7 Black, 2009 B8 S4 Black, 1998 D2 S8 Agate Grey, 2006 D3 4.2 Tdi Blue, 2006 D3 S8, 2007 Q7 3.0 Tdi, 2006 C6 S6
Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
