D3 - Sat Nav, ICE, Audio & TV All in car entertainment discussions |
|
Thread Tools | Display Modes |
#11
|
||||
|
||||
Quote:
The sound quality is excellent. 9.5/10 compared to the AMI but not as good as a CD. Equivalent to Bluetooth streaming to your home cinema. I have the AMI but I prefer not to use the Bluetooth streaming all the time and prefer to have an ipod plugged in all the time instead. So I wanted both. This means I went for the Fusion BT-100. Anything connected to RCA cables in the car will NOT be able to be controlled by the MMI. You would need an AMI unit for that. Since the cost of this little receiver is tiny, I wouldn't expect MMI control anyway. Happily, both the Audi phone and Fusion BT connect simultaneously and do not interfere when music is playing or a phone call is on. The phone Siri can control the music so no need for the mmi control. To fit this unit you will need: An Analogue or digital TV module, which has inputs for the RCA. Since specs are all over the place in different countries, you need to check your car to find out if you have the TV module and then buy and fit the Kufatec RCA cables. When the AV1 is selected the music comes through. The screen goes blank as I have nothing plugged into the video cable. I could easily fit something but I can't be bothered. I usually change it back to the CAR page on the MMI or NAV. The music plays as normal still. Mike
__________________
04 A8 - 4.2 Sport Indigo Leather Sports Seats - Sports wheel - Sports Air Suspension Auto Boot - Double Glazing - AMI - Solar roof TV - Bose - Voice Control - TPMS - AFS- TINT Power Blind, Fingerprint - Light package (in and out) Retrofits: OEM Auto headlights & rain sensing wipers OEM Bluetooth phone Bluetooth Audio Streaming Reverse Camera OEM Aluminium Package Auto boot close using remote/door button |
#12
|
|||
|
|||
I have now received my AV cable. Is there a picture of the pins on the red plug that I need to connect into.
Many thanks |
#13
|
||||
|
||||
Here is what I posted in July 2015
I can confirm that the Aux Output gives a video/audio signal for the RSE(Rear Seat Entertainment). The output is whatever you have selected on the MMI. I do not have RSE so I borrowed Guy's car and used a long RCA cable to send my Output to his Aux 1 input. Whatever I selected on my MMI was relayed to his MMI. To save any misconception here are the pinouts tidied up:- Aux Input 1 PIN 09 – Audio Shield left/right PIN 10 – Audio signal left white PIN 11 – Audio signal right red PIN 12 – Video signal yellow PIN 13 - Video Shield Aux Input 2 PIN 15 – Audio Shield left/right PIN 16 – Audio signal left white PIN 17 – Audio signal right red PIN 18 – Video signal yellow PIN 19 – Video Shield Video output (only for Hybrid-Tuner) PIN 4 – Video Shield PIN 5 – Video signal yellow PIN 6 – Audio Shield left/right PIN 7 – Audio left white PIN 8 – Audio right red
__________________
Ray at Wigan Pier 2014 A8L D4 4.0TFSI Gold (Sticker says "Beige") Can't leave you in a black smoke cloud anymore.. In progress, Nothing left to do. Gone 2004 A8 D3 3.0 TDI. Ebony Pearl Black (with little bits of other colours and glitter) |
#14
|
|||
|
|||
Quote:
Many thanks |
#15
|
|||
|
|||
the connector is marked with the numbers on each corner.
__________________
______________________________________________ A8 4.2TDI - Ice Silver, Comfort heated/cooled/massage Seats, Alcantara, Extended Leather pack, Ambient light pack, Solar roof, Night Vision, Lane change assist, Audi presense, Audi BrakeGuard, ACC Cruise, Blinds, Quad Air, AMI, Online services, Parking with rear Camera, Aluminium brushed inlays, Adaptive Zenons, High beam assist, Bose Sound, and more Gone but not forgotten: A8 D3 2005- AMI HDD, Audible Parking, TV, NAV, Bluetooth, Hybrid TV, Aftermarket headrest monitors, Rosstech VCDS / Vagcom |
#16
|
|||
|
|||
__________________
______________________________________________ A8 4.2TDI - Ice Silver, Comfort heated/cooled/massage Seats, Alcantara, Extended Leather pack, Ambient light pack, Solar roof, Night Vision, Lane change assist, Audi presense, Audi BrakeGuard, ACC Cruise, Blinds, Quad Air, AMI, Online services, Parking with rear Camera, Aluminium brushed inlays, Adaptive Zenons, High beam assist, Bose Sound, and more Gone but not forgotten: A8 D3 2005- AMI HDD, Audible Parking, TV, NAV, Bluetooth, Hybrid TV, Aftermarket headrest monitors, Rosstech VCDS / Vagcom |
#17
|
|||
|
|||
I hadn't realised they were labelled on the connector. Right, off to the garage I go.......
|
#18
|
|||
|
|||
Ok, all done. The AV1 lead is on. Only took about 10 minutes. My steps were:

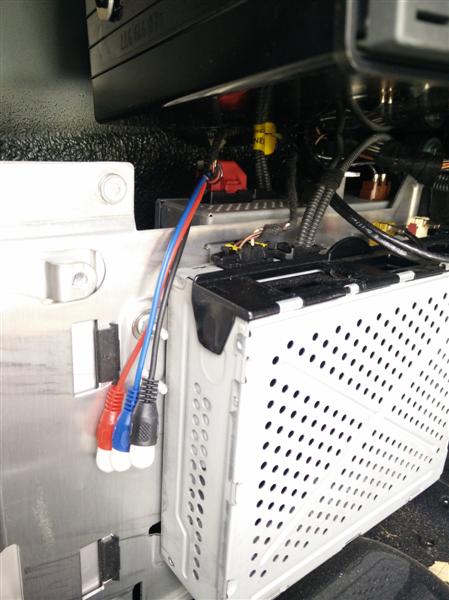

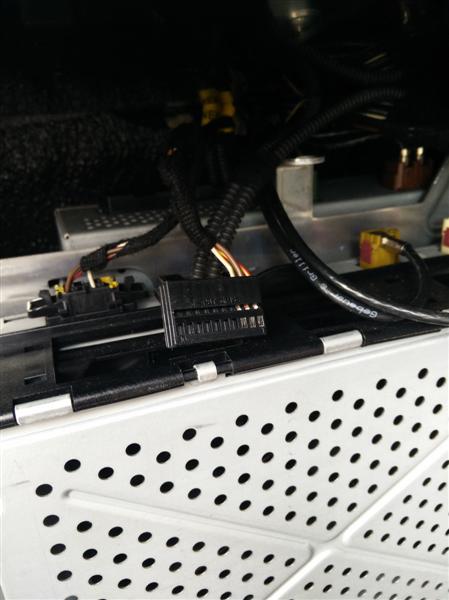

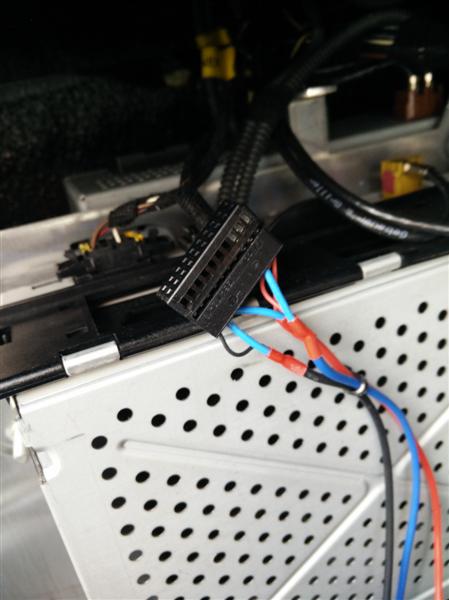

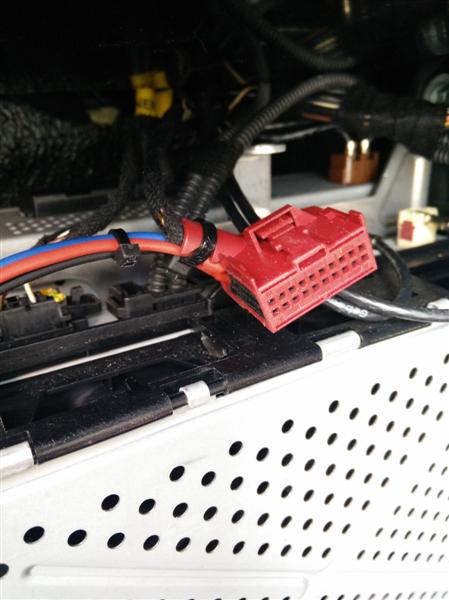

1. Remove interior cover by turning the two plastic screws a quarter turn 2. reach in an unplug the red 20 pin connect. I didn't need to remove the nav player 3. Slide the red cover sideways off the 20 pin connector block 4. make a note of the pin numbers indicated in each corner of the block and then insert the pins on the AV fly lead as per the instructions earlier in this thread 5. Slide the red cover back onto the connector block 6. secure the leads with a tie wrap And that was it. I just need to add an AV source and test it. I attach a few pictures. Thanks again to all for your help. Much appreciated. |
#19
|
||||
|
||||
Well done.
Thanks for letting us know that all is well. Great isn't it when it all goes together. My holdup is readies, have to keep saving up for everything, and just as I think I'm nearly there Mrs management comes up with something urgent, like washing powder or toothpaste needed.
__________________
Ray at Wigan Pier 2014 A8L D4 4.0TFSI Gold (Sticker says "Beige") Can't leave you in a black smoke cloud anymore.. In progress, Nothing left to do. Gone 2004 A8 D3 3.0 TDI. Ebony Pearl Black (with little bits of other colours and glitter) |
#20
|
|||
|
|||
Quote:
I tend to ask for forgiveness rather than permission Thanks for your help |
|
|
