#51
28th September 2012, 12:25 PM
|
|||
|
|||
Quote:
 I've just checked the aerial sockets on the tuner and as soon as the RNS is turned on there is +10V on the central connector of each socket. Most systems use 5V though so not sure of the implications of this. While delving around I totally removed the tuner and will have a look inside - maybe I can remove the sockets from there (they're useless in situ) and use them for a DIY adapter? Edit: Not in any practical way, they're rather too integrated into a metal-caged unit that has no obvious way of removal or entry.
__________________
2003 D2 FL S8. Irish Green Pearl/Beige. Solar sunroof, auto-dim mirrors, electric rear seat functions and extended leather. Ski hatch retrofit. Aftermarket reversing camera. DVB-T and XCarlink now removed as redundant. 2016 Volvo V40 T5 Cross Country (4WD) with ALL the toys including adaptive cruise etc. etc. Osmium Grey with Blonde/Charcoal leather interior. Polestar performance "optimisation".  (Even rarer than a D2 S8!) Oh, and a brand new engine at just under 30,000 miles on the factory one!  Finally: gone, but not forgotten..... 1998 D2 PF S8. Agate Grey/Platinum. Every option (I think) except electric rear seats, Tiptronic steering wheel, ski hatch, towbar & dimming door mirrors. e.g. Cruise control, NavPlus/TV, Bose, GSM, Xenons, Solar roof, Parking sensors, Alcantara/leather everywhere of course.  (internal dimming mirror added later)1998 (very early) Ford Focus 1.8 Zetec; ABS/TCS, Heated screen/mirrors, Aircon. Added Auto-dim mirror, Leather seats, Trip computer, Cruise control, OEM Ford SatNav with CD changer. And before that a lot of Rover 800s, a few oddities, a lovely Triumph Dolomite 1850HL with Overdrive and way back in my schooldays an Austin Seven aka Mini 850!
Last edited by HPsauce; 28th September 2012 at 12:55 PM.
|
|
#52
28th September 2012, 02:01 PM
|
|||
|
|||
Quote:
So, short of installing a relay or switch I'll need to have the ignition on to watch TV when parked up. I also found a description of the multi-pin video connector on a German web site. This might enable the old TV tuner to be dispensed with entirely, feeding the DVB-T directly to the RNS? NF = Niederfrequency = Audiofrequency (Though the RNS seems to detect the tuner via the 6-pin power lead, unplug that and it's N/A) On the plus side I've fixed my hum problem! (see other thread)
__________________
2003 D2 FL S8. Irish Green Pearl/Beige. Solar sunroof, auto-dim mirrors, electric rear seat functions and extended leather. Ski hatch retrofit. Aftermarket reversing camera. DVB-T and XCarlink now removed as redundant. 2016 Volvo V40 T5 Cross Country (4WD) with ALL the toys including adaptive cruise etc. etc. Osmium Grey with Blonde/Charcoal leather interior. Polestar performance "optimisation". (Even rarer than a D2 S8!) Oh, and a brand new engine at just under 30,000 miles on the factory one! Finally: gone, but not forgotten..... 1998 D2 PF S8. Agate Grey/Platinum. Every option (I think) except electric rear seats, Tiptronic steering wheel, ski hatch, towbar & dimming door mirrors. e.g. Cruise control, NavPlus/TV, Bose, GSM, Xenons, Solar roof, Parking sensors, Alcantara/leather everywhere of course. (internal dimming mirror added later)1998 (very early) Ford Focus 1.8 Zetec; ABS/TCS, Heated screen/mirrors, Aircon. Added Auto-dim mirror, Leather seats, Trip computer, Cruise control, OEM Ford SatNav with CD changer. And before that a lot of Rover 800s, a few oddities, a lovely Triumph Dolomite 1850HL with Overdrive and way back in my schooldays an Austin Seven aka Mini 850!
Last edited by HPsauce; 28th September 2012 at 03:16 PM.
|
|
#53
28th September 2012, 02:47 PM
|
|||
|
|||
|
What you need is one of these, dispenses with the analogue tuner altogether.
http://www.ebay.co.uk/itm/1809802989...84.m1423.l2649
__________________
Manny 2004 A4 1.8T Sport Cabriolet, 89K Miles Past 2004 D3 A8 3.7 Quattro, Xenon, Bose, Blinds, Solar Sunroof, TV, ACC, phone and almost every option. 168K miles rising slowly with retrofit AMI and DVB-T in place of Analogue 2003 Volvo S60 D5 SE Manual, 197K miles. 2001 D2 A8 3.7 QS, Bi-Xenon, Bose, Blinds, Electric Everything, retrofitted RNS-D, 191K Miles
|
|
#54
28th September 2012, 03:18 PM
|
|||
|
|||
|
Quote:
__________________
2003 D2 FL S8. Irish Green Pearl/Beige. Solar sunroof, auto-dim mirrors, electric rear seat functions and extended leather. Ski hatch retrofit. Aftermarket reversing camera. DVB-T and XCarlink now removed as redundant. 2016 Volvo V40 T5 Cross Country (4WD) with ALL the toys including adaptive cruise etc. etc. Osmium Grey with Blonde/Charcoal leather interior. Polestar performance "optimisation". (Even rarer than a D2 S8!) Oh, and a brand new engine at just under 30,000 miles on the factory one! Finally: gone, but not forgotten..... 1998 D2 PF S8. Agate Grey/Platinum. Every option (I think) except electric rear seats, Tiptronic steering wheel, ski hatch, towbar & dimming door mirrors. e.g. Cruise control, NavPlus/TV, Bose, GSM, Xenons, Solar roof, Parking sensors, Alcantara/leather everywhere of course. (internal dimming mirror added later)1998 (very early) Ford Focus 1.8 Zetec; ABS/TCS, Heated screen/mirrors, Aircon. Added Auto-dim mirror, Leather seats, Trip computer, Cruise control, OEM Ford SatNav with CD changer. And before that a lot of Rover 800s, a few oddities, a lovely Triumph Dolomite 1850HL with Overdrive and way back in my schooldays an Austin Seven aka Mini 850!
|
|
#55
3rd October 2012, 09:30 AM
|
|||
|
|||
|
Well now I am TOTALLY confused.
I've just taken delivery (thanks A8parts )of a 4D0 035 530 aerial unit with the "old type" connectors, with the original aim of dismantling it just to use the connectors.But looking at it I really have NO IDEA where it goes and what it does! It has no external power supply and only has 6 active sockets (of 8 - 2 have nothing behind them). It happens to have a few "cut off" leads/plugs with it, I presume originals as they've been cut (though one has been snapped out). One group of 4 sockets have "thin" leads, so I "presume" these are TV aerials - but are they input or output? Logic says they should be the leads from 4 diversity aerials, but my TV tuner has 4 leads to it. And it really wouldn't make sense to have 1 aerial lead into a box like this leading to 4 to the tuner - or would it?  The other conector block only uses 1 and 4. #4 has a thin TV-type lead and #1 a stub of thicker coax that could be a radio lead? So my interpretation of this box is that it takes input from 4 aerials and feeds a radio signal down one cable and TV down another. Power must come from outside somewhere, up one of the cables. I'll open it up soon to see if that gives any clues. This does make me wonder how my car is wired up? Thoughts anyone?
__________________
2003 D2 FL S8. Irish Green Pearl/Beige. Solar sunroof, auto-dim mirrors, electric rear seat functions and extended leather. Ski hatch retrofit. Aftermarket reversing camera. DVB-T and XCarlink now removed as redundant. 2016 Volvo V40 T5 Cross Country (4WD) with ALL the toys including adaptive cruise etc. etc. Osmium Grey with Blonde/Charcoal leather interior. Polestar performance "optimisation". (Even rarer than a D2 S8!) Oh, and a brand new engine at just under 30,000 miles on the factory one! Finally: gone, but not forgotten..... 1998 D2 PF S8. Agate Grey/Platinum. Every option (I think) except electric rear seats, Tiptronic steering wheel, ski hatch, towbar & dimming door mirrors. e.g. Cruise control, NavPlus/TV, Bose, GSM, Xenons, Solar roof, Parking sensors, Alcantara/leather everywhere of course. (internal dimming mirror added later)1998 (very early) Ford Focus 1.8 Zetec; ABS/TCS, Heated screen/mirrors, Aircon. Added Auto-dim mirror, Leather seats, Trip computer, Cruise control, OEM Ford SatNav with CD changer. And before that a lot of Rover 800s, a few oddities, a lovely Triumph Dolomite 1850HL with Overdrive and way back in my schooldays an Austin Seven aka Mini 850!
|
|
#56
3rd October 2012, 09:34 AM
|
||||
|
||||
|
Quote:
- Directly feeding TV into the Nav unit is a pain as it doesnt take a regular composite feed, its RGB which is what those splitter boxes do - However unless the splitter box generates a canbus signal to say 'im here' then the TV function will remain disabled on the Nav unit. They work well on VW MFD etc as they dont check for this signal. Leaving the tuner in place is always way easier....
__________________
For parts enquiries and Forum User Administration please contact customer services directly, not me - enquiry@a8parts.co.uk, www.a8parts.co.uk, or call 01642 783537The Daily Town Car - 2023 Tesla Model Y Performance. Black with Black. Giant ipad screen, huge sunroof, 4 wheel drive, Tow bar, lots of ooomph and made in China, so actually built properly unlike the Californian ones. The Family Wagon - 2018 Tesla Model X. Black, 7 Seats, Towbar, Homelink, Enhanced Auto pilot with Summon and self park, Heated front seats, CCS Charger upgrade, MCU2 Upgrade, Falconwing Doors, Self opening / closing doors, Netflix, Spotify, toys, Air suspension, alcantara roof + lots of other stuff...... The 17 year old Driver Wagon 2015 Skoda Citigo Monte Carlo. Alloys, Power steering, Aircon, Leccy windows, Sat Nav, bluetooth, central locking, cup holders, 59 whole bhp. Million times better than my first car. Well jealous..... The First 20 Audis: 2001 D2 4.2 QS Silver, 1997 D2 S8 Silver, 1999 D2 4.2 Silver, 2002 D2 S8 Dolphin Grey, 2003 C5 RS6 Blue, 1998 D2 S8 Black, 2000 D2 4.2 QS/S8 Ming Blue, 2003 D3 4.2 Ming Blue, 2005 B7 S4 Blue, 2006 D3 3.0 Tdi Black, 1999 D2 4.2 Silver, 2003 D3 4.2 LPG Crystal Blue, 2000 D2 S8 Silver, 2007 3.0 Tdi Q7 Black, 2009 B8 S4 Black, 1998 D2 S8 Agate Grey, 2006 D3 4.2 Tdi Blue, 2006 D3 S8, 2007 Q7 3.0 Tdi, 2006 C6 S6, The Second 20 Audis: 2011 A7 Sline, 2001 A2 1.4 Tdi Black, 2002 A2 1.4 Tdi Silver, 2006 A8 4.2 Tdi Blue, 2007 4.2 Tdi Q7, 2006 S4 Cab Silver, 2010 RS6 Saloon Black  , 2007 TT Roadster, 2010 A8 D4 4.2 Silver, 2006 C6 A6 2.7 Tdi Quattro, 2000 D2 4.2 QS/S8 Ming Blue (again), 2008 Q7 4.2 Black, 2009 C6 RS6 Saloon Daytona Grey, 2001 Fully Loaded A2 Tdi, 2006 Avant S6 Black, 2007 VW Caravelle Exec Black (almost an Audi) 2009 TT Roadster Daytona, 2015 Q7 4.2 tdi lava grey, 2002 GmbH D2 demonstrator, 2006 D3 A8 LWB 4.2 Tdi Black Most Recent Audis: 2001 A2 1.4 Tdi Black, 2007 4.2 FSi Q7 ABT Blue, 2016 S5 Coupe Launch model, 2004 S4 B6 Cabriolet, 2016 Q7 Sline White, 2006 Q7 4.2 FSi Black, 2012 Q7 Sline+ 4.2Tdi White, 2008 Blue Audi S8 Everything Else 1989 Subaru Justy, 1986 Vauxhall Cartlton 2.0 GL, 1985 Vauxhall Carlton 2.2 CDi, 1987 Ford Sierra XR4x4, 1983 Vauxhall Senator, 1985 Vauxhall Senator 3.0i, 1997 Polo Saloon, 1997 Peugeot 306 1.9 TDi, Ford Sierra Sapphire 2000E, 1990 Subaru Justy, 2000 Subaru Impreza, 2000 Subaru Impreza RB5, 1993 Range Rover LSE, 2005 VW Bora, 2003 Skoda Superb, 2003 VW Passat V6 4 Motion, 1996 Peugeot 106, 2000 Range Rover 4.0, 2019 Tesla Model 3 Performance
|
|
#57
3rd October 2012, 09:50 AM
|
|||
|
|||
|
Quote:
I had my multimeter out and there's definitely a black/blue lead that ONLY goes live (+12V) when the ignition is on. I'm leaving the TV tuner in place anyway. The aerial mystery in the previous post is much more intriguing though...
__________________
2003 D2 FL S8. Irish Green Pearl/Beige. Solar sunroof, auto-dim mirrors, electric rear seat functions and extended leather. Ski hatch retrofit. Aftermarket reversing camera. DVB-T and XCarlink now removed as redundant. 2016 Volvo V40 T5 Cross Country (4WD) with ALL the toys including adaptive cruise etc. etc. Osmium Grey with Blonde/Charcoal leather interior. Polestar performance "optimisation". (Even rarer than a D2 S8!) Oh, and a brand new engine at just under 30,000 miles on the factory one! Finally: gone, but not forgotten..... 1998 D2 PF S8. Agate Grey/Platinum. Every option (I think) except electric rear seats, Tiptronic steering wheel, ski hatch, towbar & dimming door mirrors. e.g. Cruise control, NavPlus/TV, Bose, GSM, Xenons, Solar roof, Parking sensors, Alcantara/leather everywhere of course. (internal dimming mirror added later)1998 (very early) Ford Focus 1.8 Zetec; ABS/TCS, Heated screen/mirrors, Aircon. Added Auto-dim mirror, Leather seats, Trip computer, Cruise control, OEM Ford SatNav with CD changer. And before that a lot of Rover 800s, a few oddities, a lovely Triumph Dolomite 1850HL with Overdrive and way back in my schooldays an Austin Seven aka Mini 850!
|
|
#58
3rd October 2012, 09:53 AM
|
||||
|
||||
|
Well, i was, until I actually read your sig after my last post and clocked the PF S8 part...
Still, its the same tuner and RNS-C gubbins that came with the early facelifts.... I need to have a look at some wiring diagrams me thinks to be 100% sure...
__________________
For parts enquiries and Forum User Administration please contact customer services directly, not me - enquiry@a8parts.co.uk, www.a8parts.co.uk, or call 01642 783537The Daily Town Car - 2023 Tesla Model Y Performance. Black with Black. Giant ipad screen, huge sunroof, 4 wheel drive, Tow bar, lots of ooomph and made in China, so actually built properly unlike the Californian ones. The Family Wagon - 2018 Tesla Model X. Black, 7 Seats, Towbar, Homelink, Enhanced Auto pilot with Summon and self park, Heated front seats, CCS Charger upgrade, MCU2 Upgrade, Falconwing Doors, Self opening / closing doors, Netflix, Spotify, toys, Air suspension, alcantara roof + lots of other stuff...... The 17 year old Driver Wagon 2015 Skoda Citigo Monte Carlo. Alloys, Power steering, Aircon, Leccy windows, Sat Nav, bluetooth, central locking, cup holders, 59 whole bhp. Million times better than my first car. Well jealous..... The First 20 Audis: 2001 D2 4.2 QS Silver, 1997 D2 S8 Silver, 1999 D2 4.2 Silver, 2002 D2 S8 Dolphin Grey, 2003 C5 RS6 Blue, 1998 D2 S8 Black, 2000 D2 4.2 QS/S8 Ming Blue, 2003 D3 4.2 Ming Blue, 2005 B7 S4 Blue, 2006 D3 3.0 Tdi Black, 1999 D2 4.2 Silver, 2003 D3 4.2 LPG Crystal Blue, 2000 D2 S8 Silver, 2007 3.0 Tdi Q7 Black, 2009 B8 S4 Black, 1998 D2 S8 Agate Grey, 2006 D3 4.2 Tdi Blue, 2006 D3 S8, 2007 Q7 3.0 Tdi, 2006 C6 S6, The Second 20 Audis: 2011 A7 Sline, 2001 A2 1.4 Tdi Black, 2002 A2 1.4 Tdi Silver, 2006 A8 4.2 Tdi Blue, 2007 4.2 Tdi Q7, 2006 S4 Cab Silver, 2010 RS6 Saloon Black , 2007 TT Roadster, 2010 A8 D4 4.2 Silver, 2006 C6 A6 2.7 Tdi Quattro, 2000 D2 4.2 QS/S8 Ming Blue (again), 2008 Q7 4.2 Black, 2009 C6 RS6 Saloon Daytona Grey, 2001 Fully Loaded A2 Tdi, 2006 Avant S6 Black, 2007 VW Caravelle Exec Black (almost an Audi) 2009 TT Roadster Daytona, 2015 Q7 4.2 tdi lava grey, 2002 GmbH D2 demonstrator, 2006 D3 A8 LWB 4.2 Tdi Black Most Recent Audis: 2001 A2 1.4 Tdi Black, 2007 4.2 FSi Q7 ABT Blue, 2016 S5 Coupe Launch model, 2004 S4 B6 Cabriolet, 2016 Q7 Sline White, 2006 Q7 4.2 FSi Black, 2012 Q7 Sline+ 4.2Tdi White, 2008 Blue Audi S8 Everything Else 1989 Subaru Justy, 1986 Vauxhall Cartlton 2.0 GL, 1985 Vauxhall Carlton 2.2 CDi, 1987 Ford Sierra XR4x4, 1983 Vauxhall Senator, 1985 Vauxhall Senator 3.0i, 1997 Polo Saloon, 1997 Peugeot 306 1.9 TDi, Ford Sierra Sapphire 2000E, 1990 Subaru Justy, 2000 Subaru Impreza, 2000 Subaru Impreza RB5, 1993 Range Rover LSE, 2005 VW Bora, 2003 Skoda Superb, 2003 VW Passat V6 4 Motion, 1996 Peugeot 106, 2000 Range Rover 4.0, 2019 Tesla Model 3 Performance
|
|
#59
3rd October 2012, 10:44 AM
|
|||
|
|||
|
Quote:

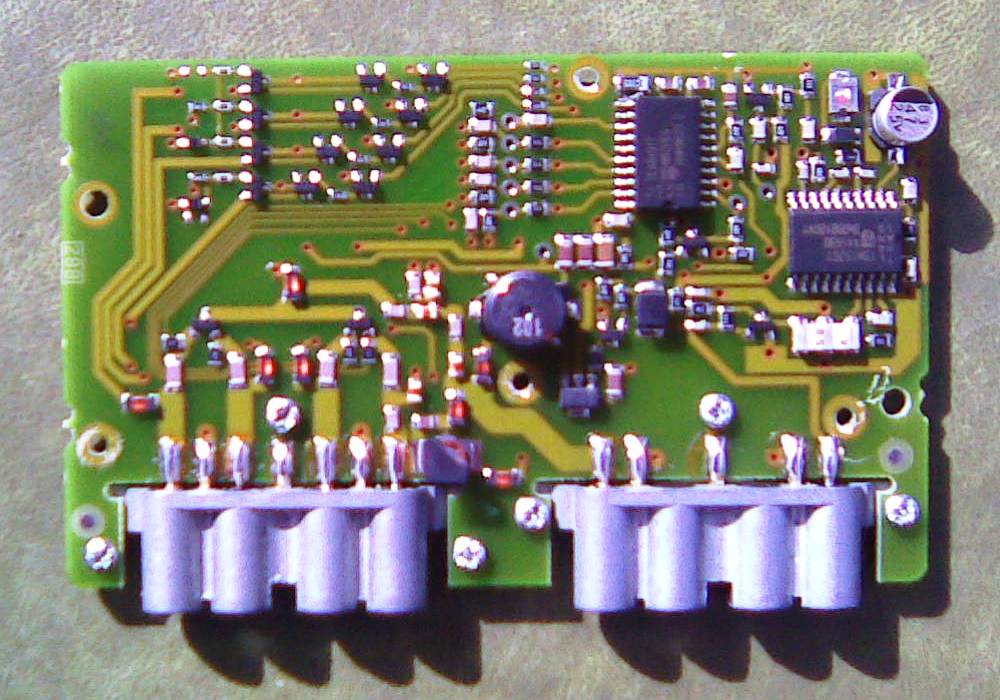

The bottom left connector is the 4 TV aerials. Bottom right has TV on the left and radio on the right (my guess). I'm also guessing that the chips are monitoring the TV signals and controlling some switches, you can see the 4 tracks converging into 1 in stages. Couple of coils too, presumably for frequency filtering? This "supports" my theory that this particular unit is an active diversity monitor switcher taking tv/radio input from 4 aerials and producing a single TV and single radio output. But that makes no sense married with my 4-input TV tuner. Not clear where the power for the chips comes from, or what voltage it would be.
__________________
2003 D2 FL S8. Irish Green Pearl/Beige. Solar sunroof, auto-dim mirrors, electric rear seat functions and extended leather. Ski hatch retrofit. Aftermarket reversing camera. DVB-T and XCarlink now removed as redundant. 2016 Volvo V40 T5 Cross Country (4WD) with ALL the toys including adaptive cruise etc. etc. Osmium Grey with Blonde/Charcoal leather interior. Polestar performance "optimisation". (Even rarer than a D2 S8!) Oh, and a brand new engine at just under 30,000 miles on the factory one! Finally: gone, but not forgotten..... 1998 D2 PF S8. Agate Grey/Platinum. Every option (I think) except electric rear seats, Tiptronic steering wheel, ski hatch, towbar & dimming door mirrors. e.g. Cruise control, NavPlus/TV, Bose, GSM, Xenons, Solar roof, Parking sensors, Alcantara/leather everywhere of course. (internal dimming mirror added later)1998 (very early) Ford Focus 1.8 Zetec; ABS/TCS, Heated screen/mirrors, Aircon. Added Auto-dim mirror, Leather seats, Trip computer, Cruise control, OEM Ford SatNav with CD changer. And before that a lot of Rover 800s, a few oddities, a lovely Triumph Dolomite 1850HL with Overdrive and way back in my schooldays an Austin Seven aka Mini 850!
|
|
#60
3rd October 2012, 12:29 PM
|
||||
|
||||
|
Quote:

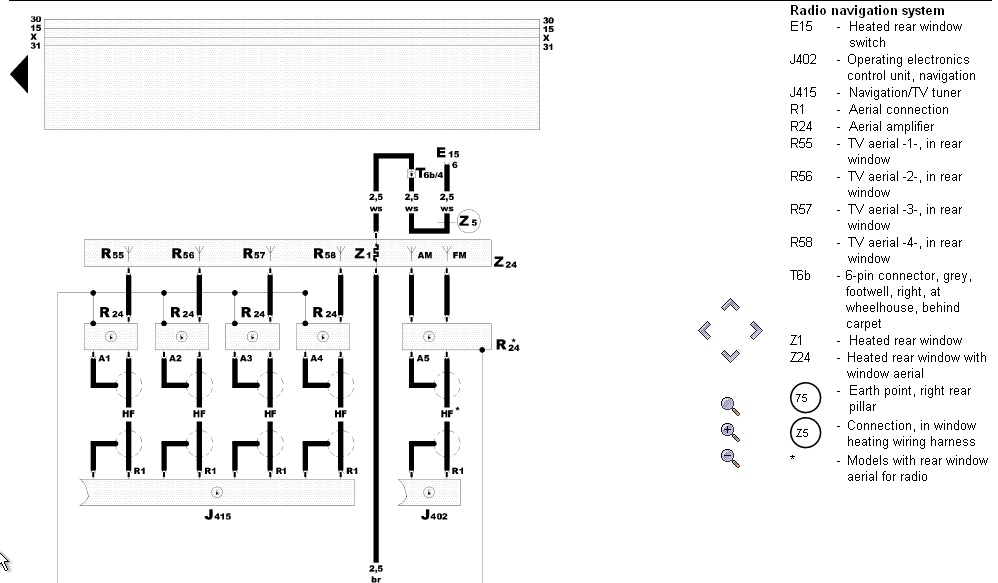

Ground via brown wires pin 1 and 5, then Canbus pair on pins 3 and 6 with the grey/red and grey/white twisted pair. On that model year, the AM and FM aerials are seperate items in the rear window which connect straight through to the Head unit in the front by the looks of it. The black box you have there seems to be an aerial amplifier, more than a diversity switcher. Perhaps the Tuner does the switching internally and the aerials on your rear screen aren't self amplified like the later ones...? I would assume the aerial connections out of the TV tuner are thus powered.... Why two of them seem completely unconnected however is a puzzle...
